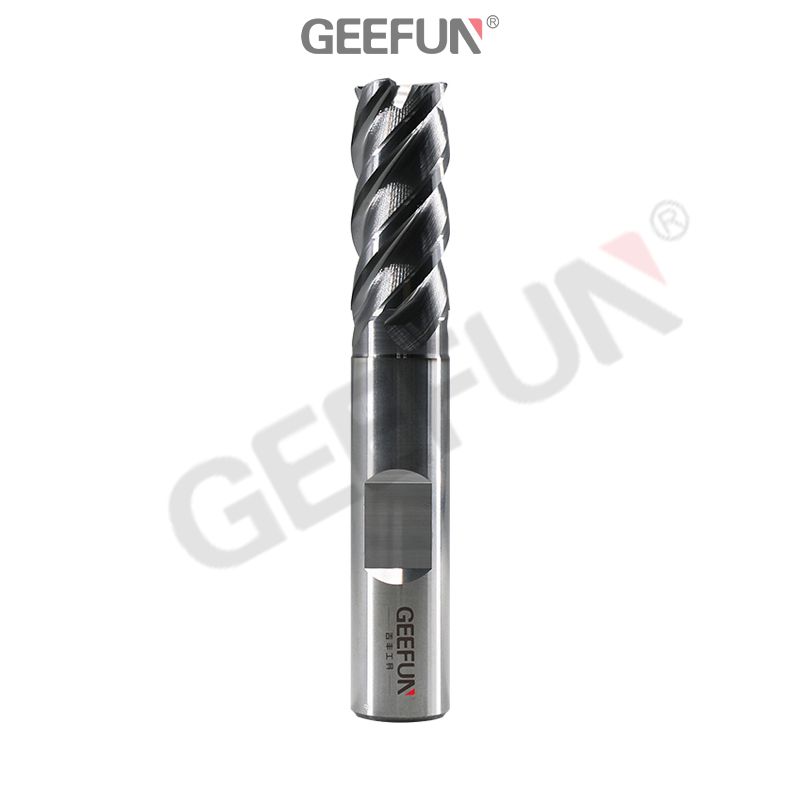

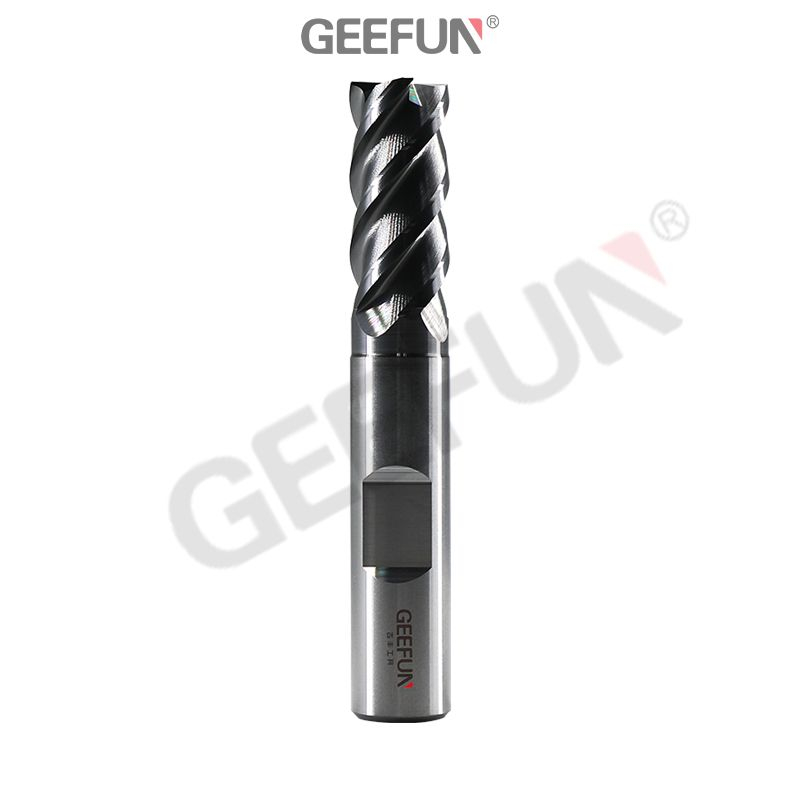

Processing of High Hardness Materials(GES)

High hardness milling cutter, high wear-resistant coating, suitable for processing composite materials and difficult-to-cut materials.
Availability:
Quantity:
facebook sharing button
twitter sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button

Benefits and Features


Suitable for hardened steel with hardness 45 ≤ HRC ≤ 70


Low vibration

● Unequal division and unequal tooth pitch can reduce vibration

● Large core thickness, strong steel and no vibration of the tool


Preferred for precision machining

● Large helix angle and cutting edge for milling superior surface quality


Anti-blade

● Tip corner protection treatment to avoid chipping


Super hard special coating

● More suitable for machining hard materials

● Heat and oxidation resistant, high wear resistance

● Effectively reduces the coefficient of friction between the tool and the material



Parameters


NO.d1d2L1L2DH6L
GES-4R053350Φ3    R0.5/8/Φ350
GES-4R103350Φ3    R1/8/Φ350
GES-4R053450Φ3    R0.5/8/Φ450
GES-4R103450Φ3    R1/8/Φ450
GES-4R054450Φ4    R0.53.783Φ450
GES-4R104450Φ4    R13.783Φ450
GES-4R055550Φ5    R0.54.7105Φ550
GES-4R105550Φ5    R14.7105Φ550
GES-4R055650Φ5    R0.54.7105Φ650
GES-4R105650Φ5    R14.7105Φ650
GES-4R056650Φ6    R0.55.7125Φ650
GES-4R106650Φ6    R15.7125Φ650
GES-4R058860Φ8    R0.57.7175Φ860
GES-4R108860Φ8    R17.7175Φ860
GES-4R053375Φ3    R0.52.7105Φ375
GES-4R103375Φ3    R12.7105Φ375
GES-4R054475Φ4    R0.53.7125Φ475
GES-4R104475Φ4    R13.7125Φ475
GES-4R055575Φ5    R0.54.7175Φ575
GES-4R105575Φ5    R14.7175Φ575
GES-4R056675Φ6    R0.55.7175Φ675
GES-4R106675Φ6    R15.7175Φ675
GES-4R058875Φ8    R0.57.7225Φ875
GES-4R108875Φ8    R17.7225Φ875
GES-4R051075Φ10    R0.59.7225Φ1075
GES-4R101075Φ10    R19.7225Φ1075
GES-4R051275Φ12   R0.511.7275Φ1275
GES-4R101275Φ12    R111.7275Φ1275
GES-4R051480Φ14   R0.513.72810Φ1480
GES-4R101480Φ14    R113.72810Φ1480
GES-4R053100Φ3    R0.52.7105Φ3100
GES-4R103100Φ3    R12.7105Φ3100
GES-4R054100Φ4    R0.53.7135Φ4100
GES-4R104100Φ4    R13.7135Φ4100
GES-4R055100Φ5    R0.54.7175Φ5100
GES-4R105100Φ5    R14.7175Φ5100
GES-4R056100Φ6    R0.55.7225Φ6100
GES-4R106100Φ6    R15.7225Φ6100
GES-4R058100Φ8    R0.57.7305Φ8100
GES-4R108100Φ8    R17.7305Φ8100
GES-4R0510100Φ10    R0.59.7355Φ10100
GES-4R1010100Φ10    R19.7355Φ10100
GES-4R0512100Φ12   R0.511.7405Φ12100
GES-4R1012100Φ12    R111.7405Φ12100
GES-4R0514100Φ14    R0.513.74010Φ14100
GES-4R1014100Φ14    R113.74010Φ14100
GES-4R0516100Φ16    R0.515.74010Φ16100
GES-4R1016100Φ16    R115.74010Φ16100
GES-4R0518100Φ18    R0.517.74010Φ18100
GES-4R1018100Φ18    R117.74010Φ18100
GES-4R0520100Φ20    R0.519.74010Φ20100
GES-4R1020100Φ20    R119.74010Φ20100
GES-4R0525100Φ25    R0.524.74010Φ25100
GES-4R1025100Φ25    R124.74010Φ25100
GES-4R0566150Φ6    R0.55.7225Φ6150
GES-4R1066150Φ6    R15.7225Φ6150
GES-4R0588150Φ8    R0.57.7305Φ8150
GES-4R1088150Φ8    R17.7305Φ8150
GES-4R0510150Φ10    R0.59.7405Φ10150
GES-4R1010150Φ10    R19.7405Φ10150
GES-4R0512150Φ12   R0.511.7405Φ12150
GES-4R1012150Φ12    R111.7405Φ12150
GES-4R0514150Φ14   R0.513.74010Φ14150
GES-4R1014150Φ14    R113.74010Φ14150
GES-4R0516150Φ16    R0.515.74510Φ16150
GES-4R1016150Φ16    R115.74510Φ16150
GES-4R0518150Φ18    R0.517.74510Φ18150
GES-4R1018150Φ18    R117.74510Φ18150
GES-4R0520150Φ20    R0.519.75010Φ20150
GES-4R1020150Φ20    R119.75010Φ20150
GES-4R0525150Φ25    R0.524.75510Φ25150
GES-4R1025150Φ25    R124.75510Φ25150
